29" WHEELS // HARDTAIL // 150MM FRONT
The Canfield Ti Nimble 9 is the evolution of an icon—our legendary steel hardtail reimagined in titanium for unparalleled ride quality, strength, and agility. Precision-crafted from oversized Ti-3AL-2.5V tubing, this limited-edition frame blends the supple, responsive feel of titanium with the playful, all-mountain capability that has made the Nimble 9 a fan favorite for over a decade.
The Ti Nimble 9 retains the aggressive all-mountain geometry that defines the N9—long, low, and slack with a 150mm fork—but now weighs a full 1.5 pounds less than its steel counterpart, giving riders even more confidence to charge technical descents and power up climbs.
Custom build options. Frame only / Frame Fork / Frame Build Kit / Complete
New for the Titanium Nimble 9:
- Ti-3AL-2.5V titanium frame – A balance of strength, compliance, and lightweight performance

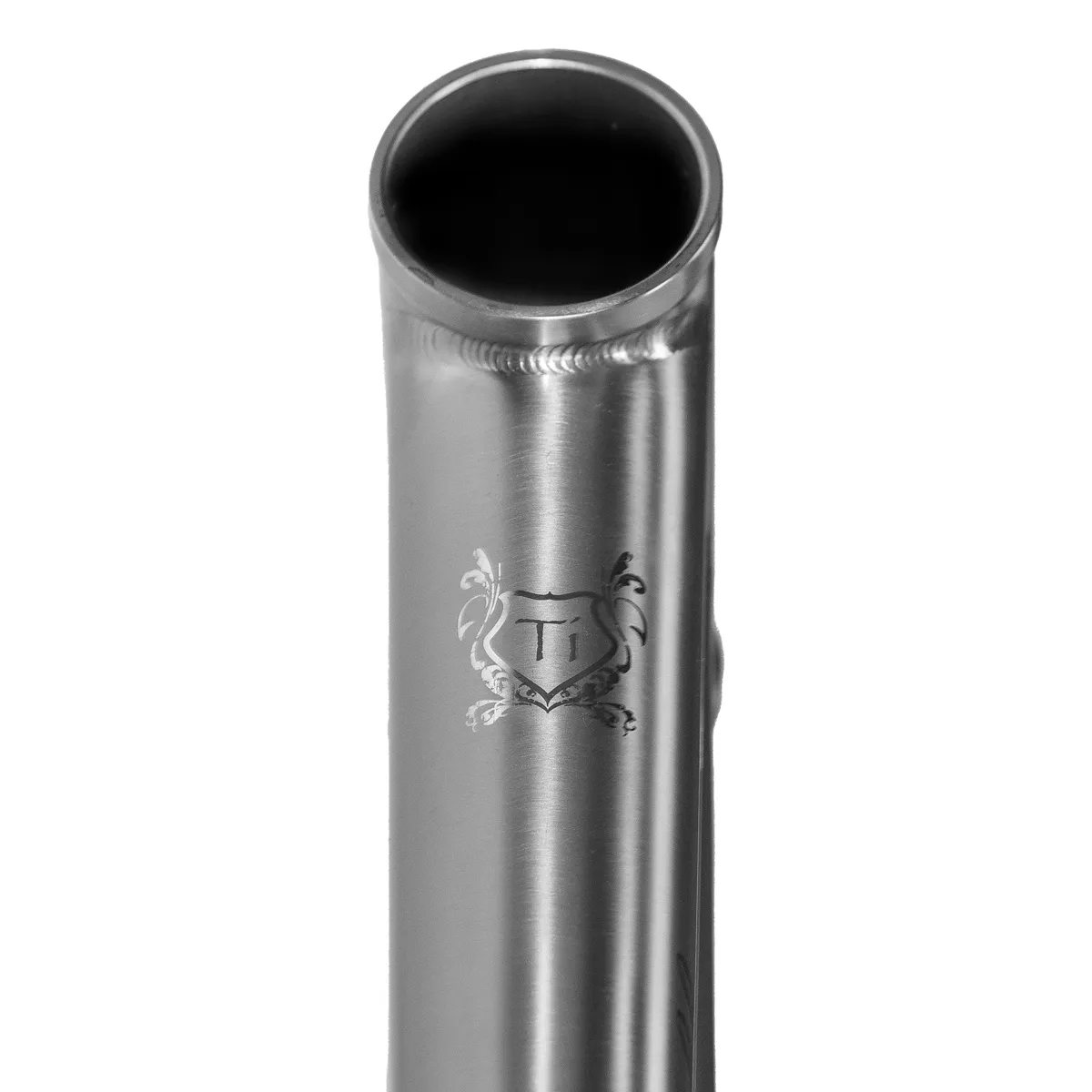

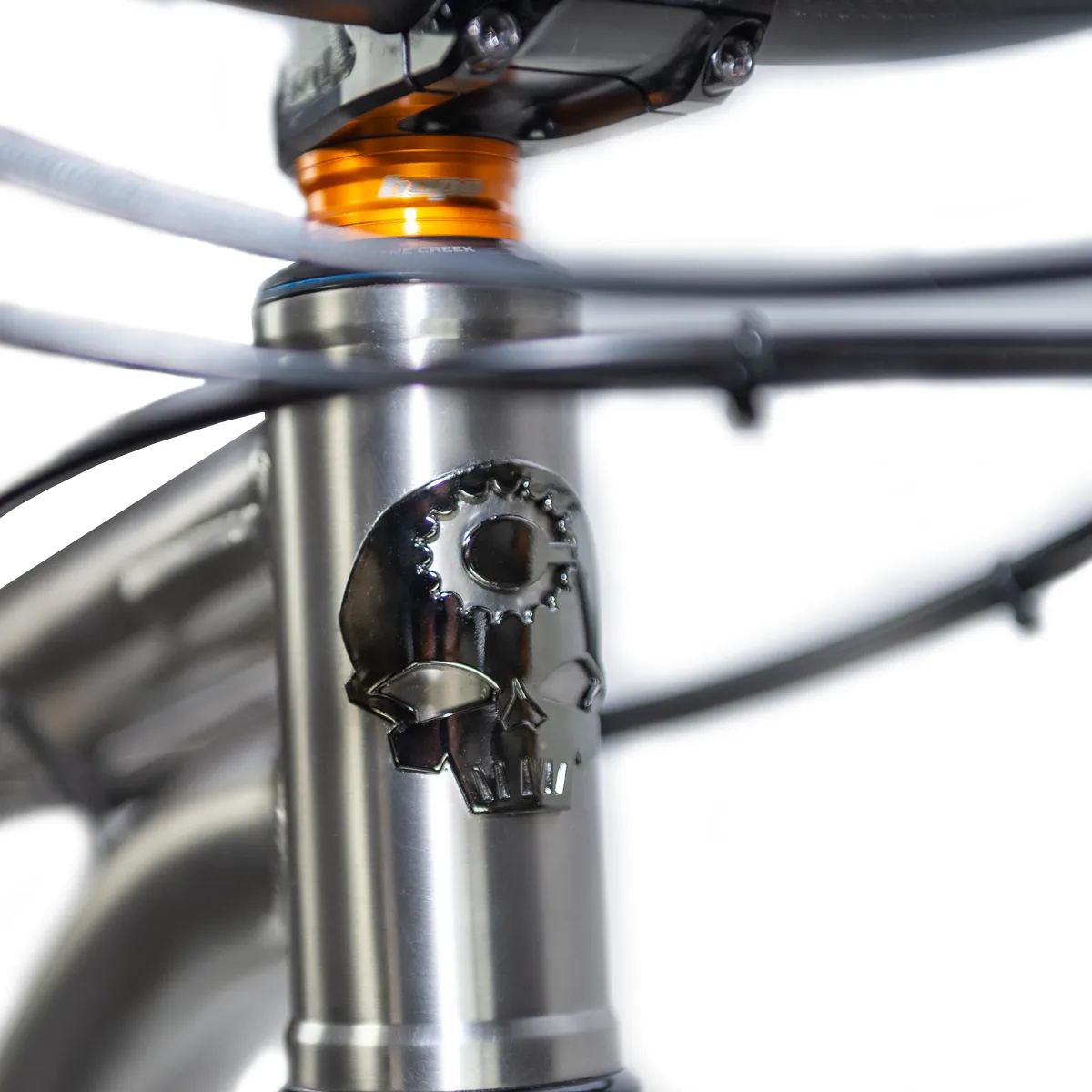

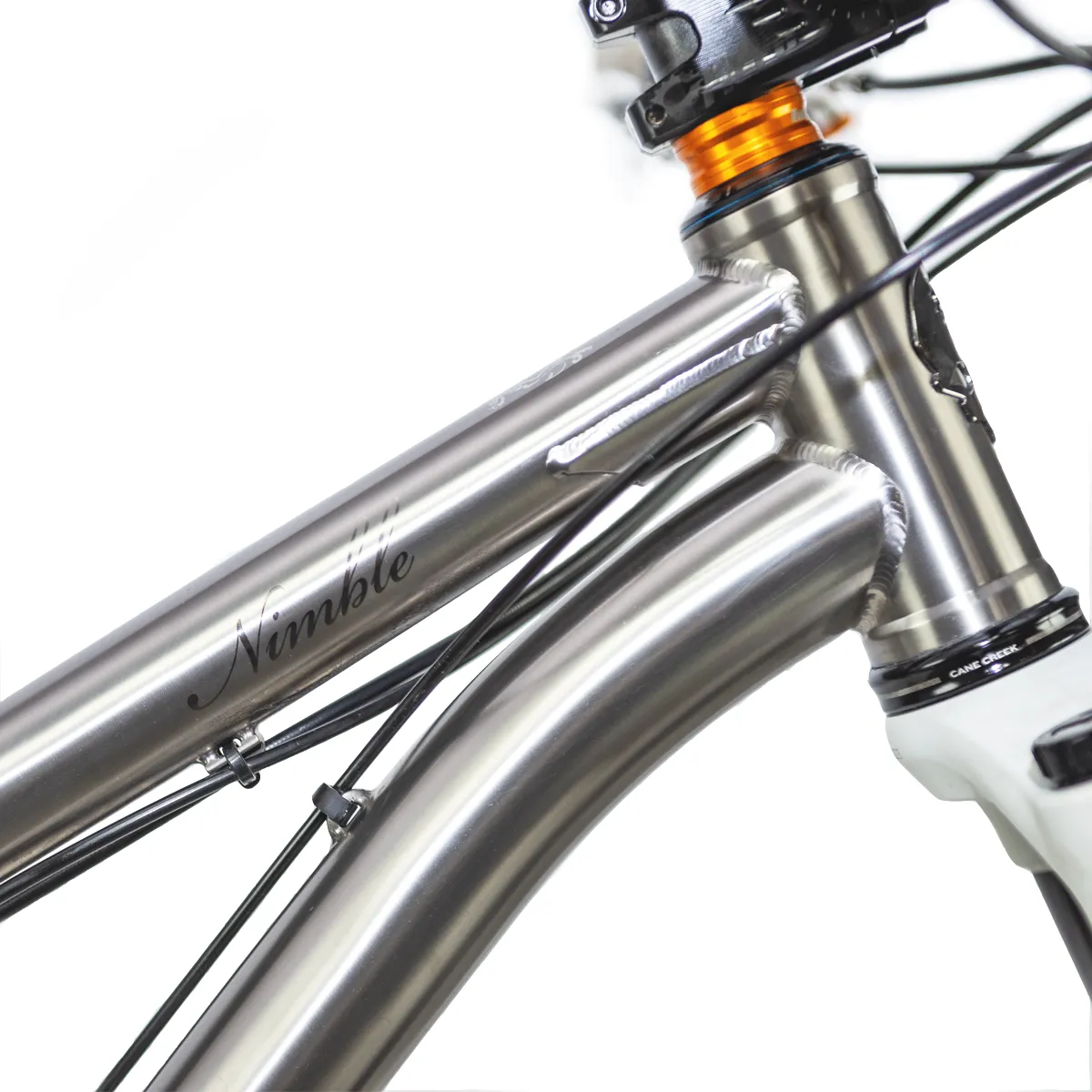

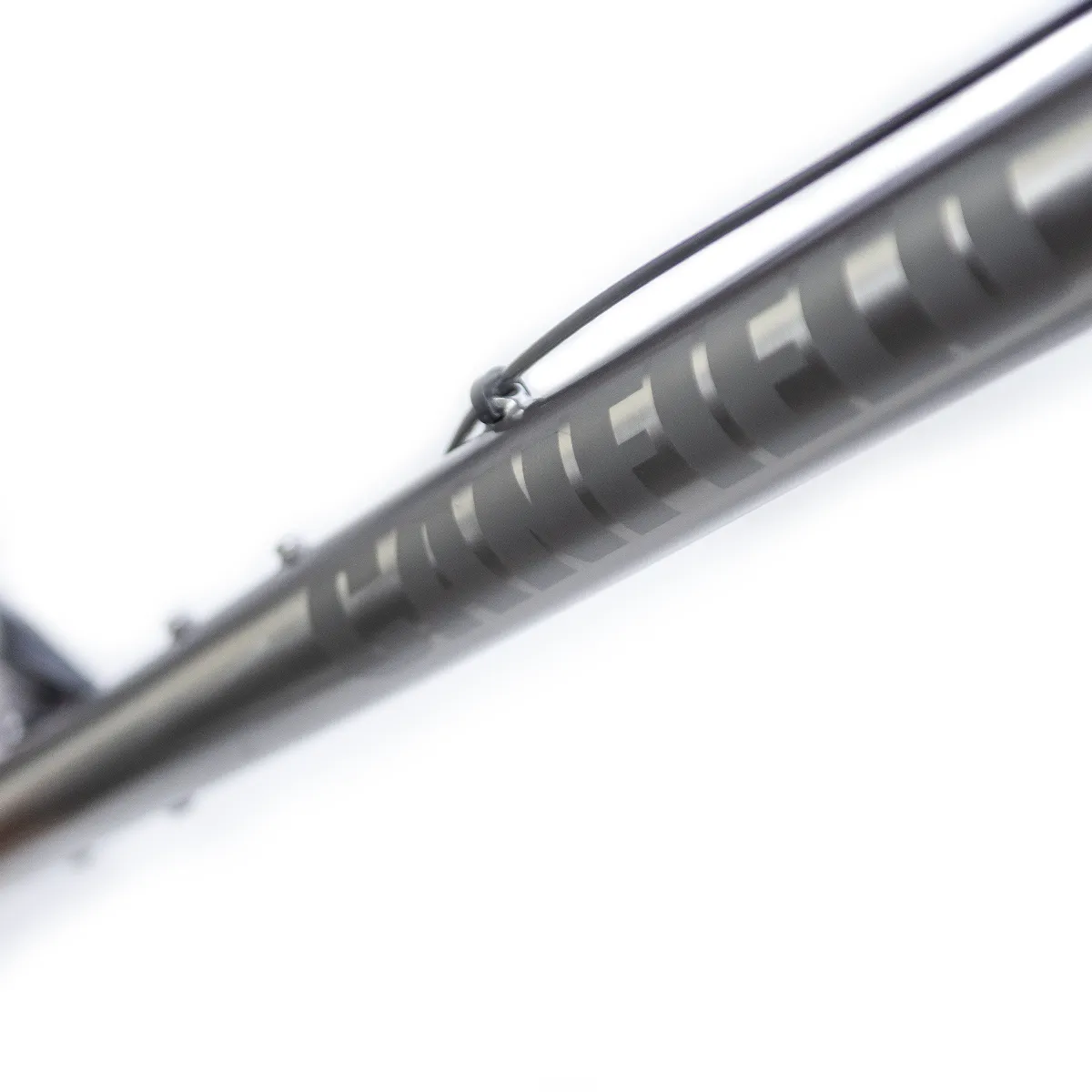

- Refined aesthetics – Brushed raw Ti finish with sand-blasted and laser-etched logos, including the debut of our redesigned Canfield logo
- Increased post insertion depth – Accommodates modern long-travel dropper posts

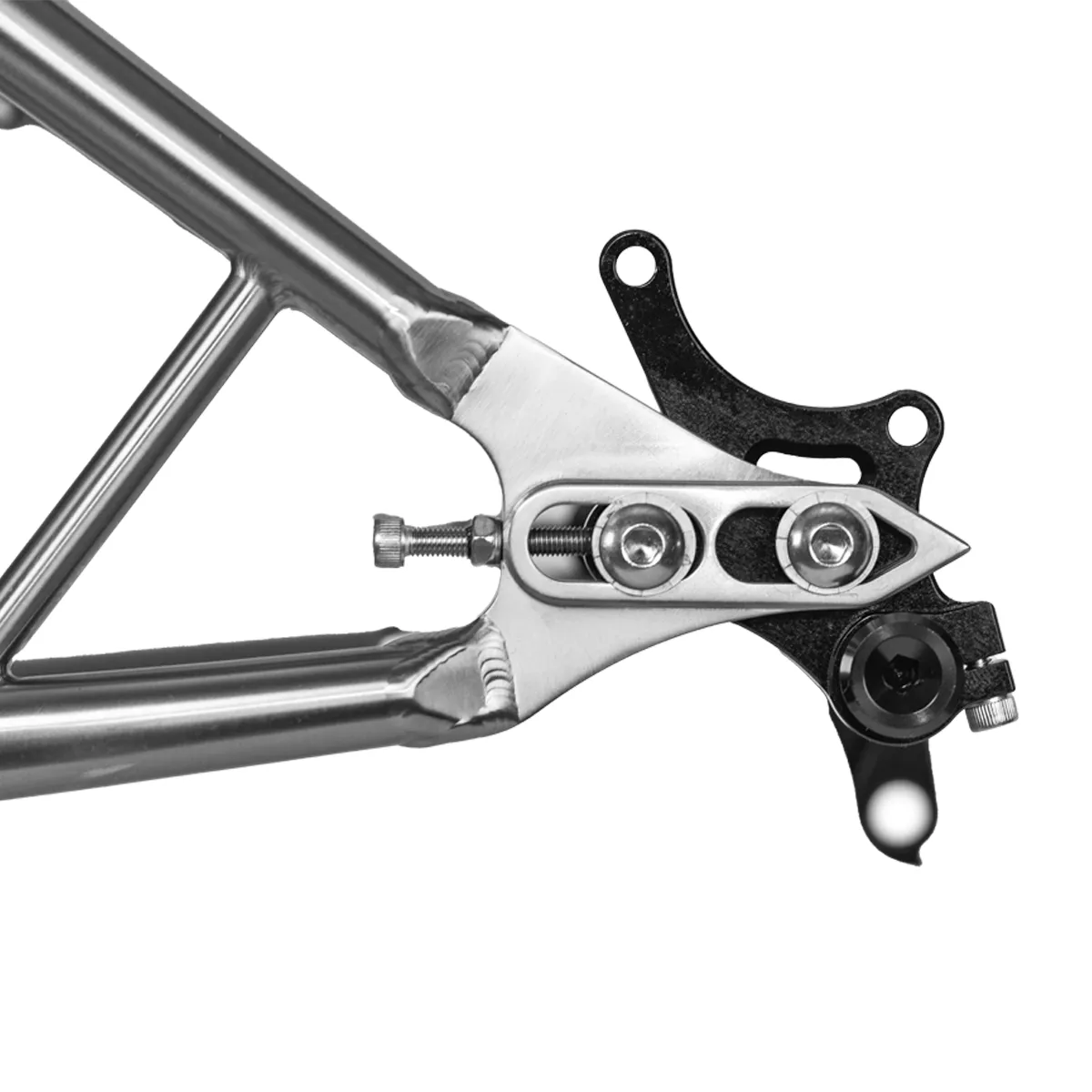

- Same legendary sliding dropouts – Adjustable chainstay length for single-speed or geared setups
- New XXL sizing – The first Canfield frame available in an XXL
Only 100 frames will be produced. Secure yours today with a 50% deposit, or pay in full to receive special discounted pricing. Estimated delivery date: May 31, 2025.
Available sizes: S, M, L, XL, XXL
Frame-only starting at: $3,199.99

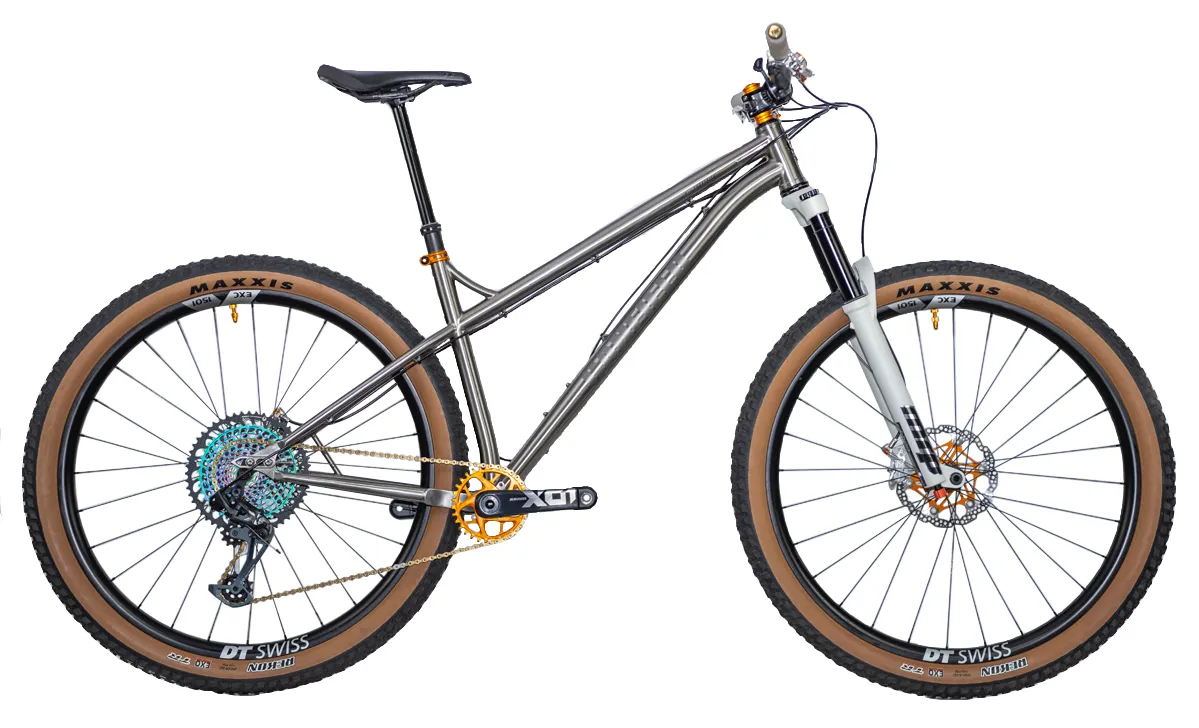

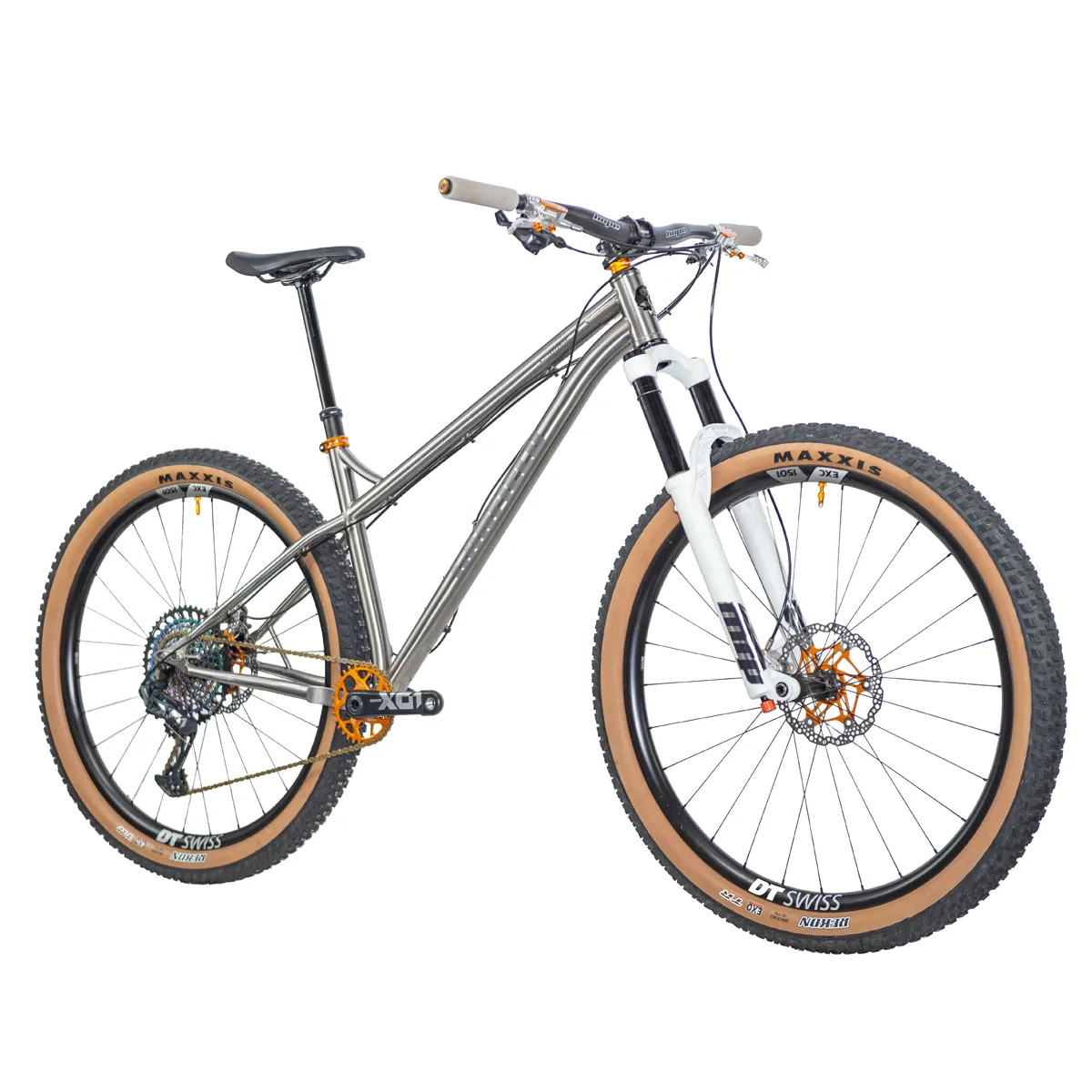

Complete builds starting at: $5,499.99
🔥 Pre-orders are live—reserve your Ti Nimble 9 now!
| OPTIONS | COMPLETES / FORKS / BUILDS |
|---|---|
| Fork Options | Fox 36 Factory Grip X 150mm Cane Creek Helm MK II 150mm RockShox Lyrik Ultimate C2 150mm MRP Ribbon LT w/custom ShredKOTE 150mm |
| GX Build | SRAM GX Shifter & Derailleur, e13 Helix-R 9-50t Cassette Canfield AM Cranks (150/155/160/165/170), 32t Chainring TRP Slate Brakeset, 180/180 rotors e13 LG1 Enduro Wheelset |
| XO Build | SRAM X01 Eagle Shifter, Derailleur, 10-52t Cassette SRAM XO1 165 Cranks w/32t Chainring SRAM G2 Ultimate Brakeset, 180/180 rotors Atomik AL30 Wheelset |
| XT Build | Shimano XT Shifter, Derailleur, Cassette, HG Chain Shimano XT 165 Cranks w/32t Chainring Shimano XT Brakeset, 180/180 rotors e13 LG1 Enduro Wheelset |
| XTR Build | Shimano XTR Shifter, Derailleur, Cassette, HG Chain |
| Other | Additional Items Included with all Build Kits |
| Tires | Maxxis DHF 2.5 & Maxxis Dissector 2.4 |
| Sealant | TruckerCo |
| Seatpost | SDG Tellis |
| Saddle | SDG Canfield Limited Edition |
| Handlebar | e*thirteen Base 800mm |
| Grips | Lizard Skin w/Canfield logo |
| Stem | Canfield Special Blend AM |
| Headset | Cane Creek 40 w/Carbon Spacers |
| Seat Clamp | Canfield Black Forged |
| Cable Housing | Jagwire |

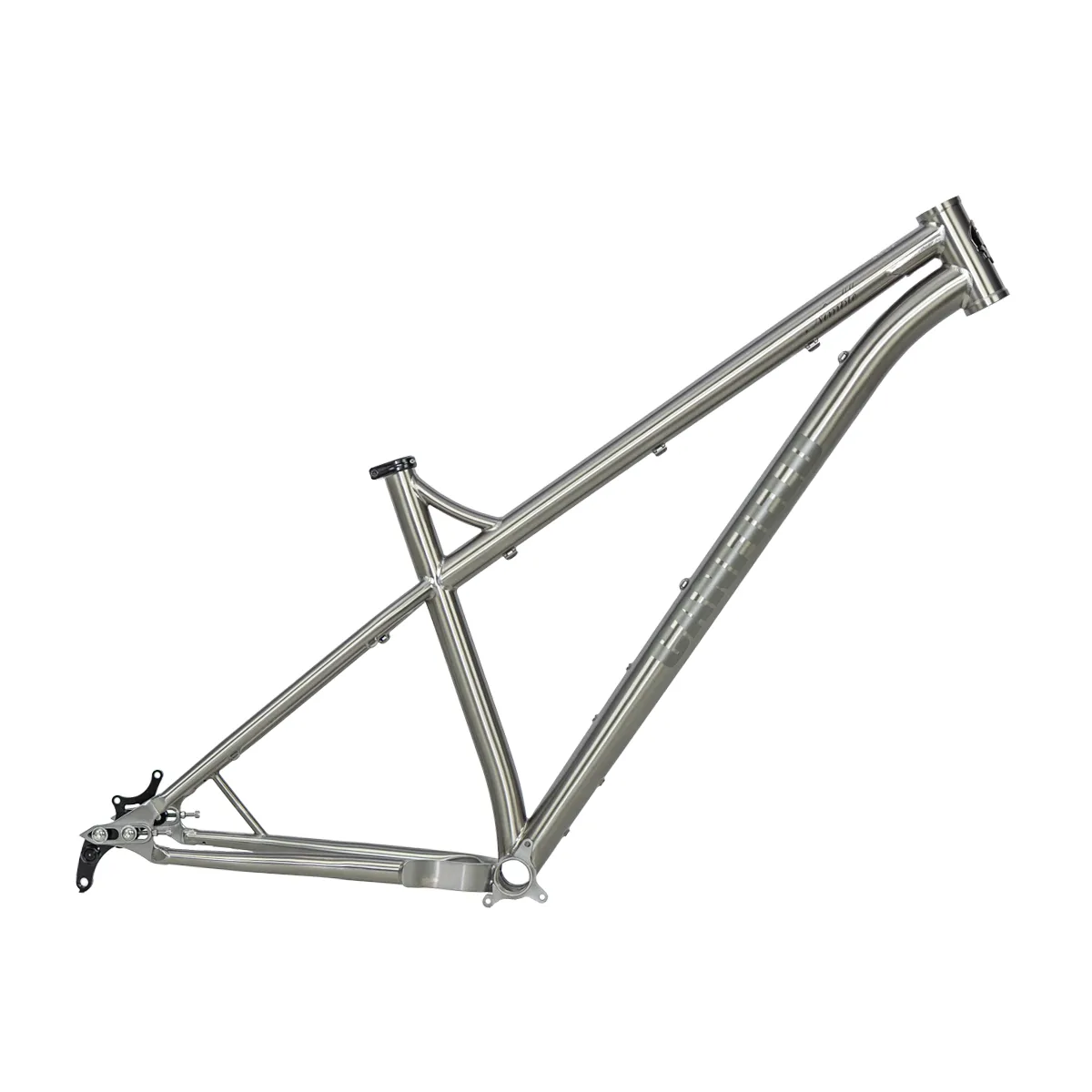

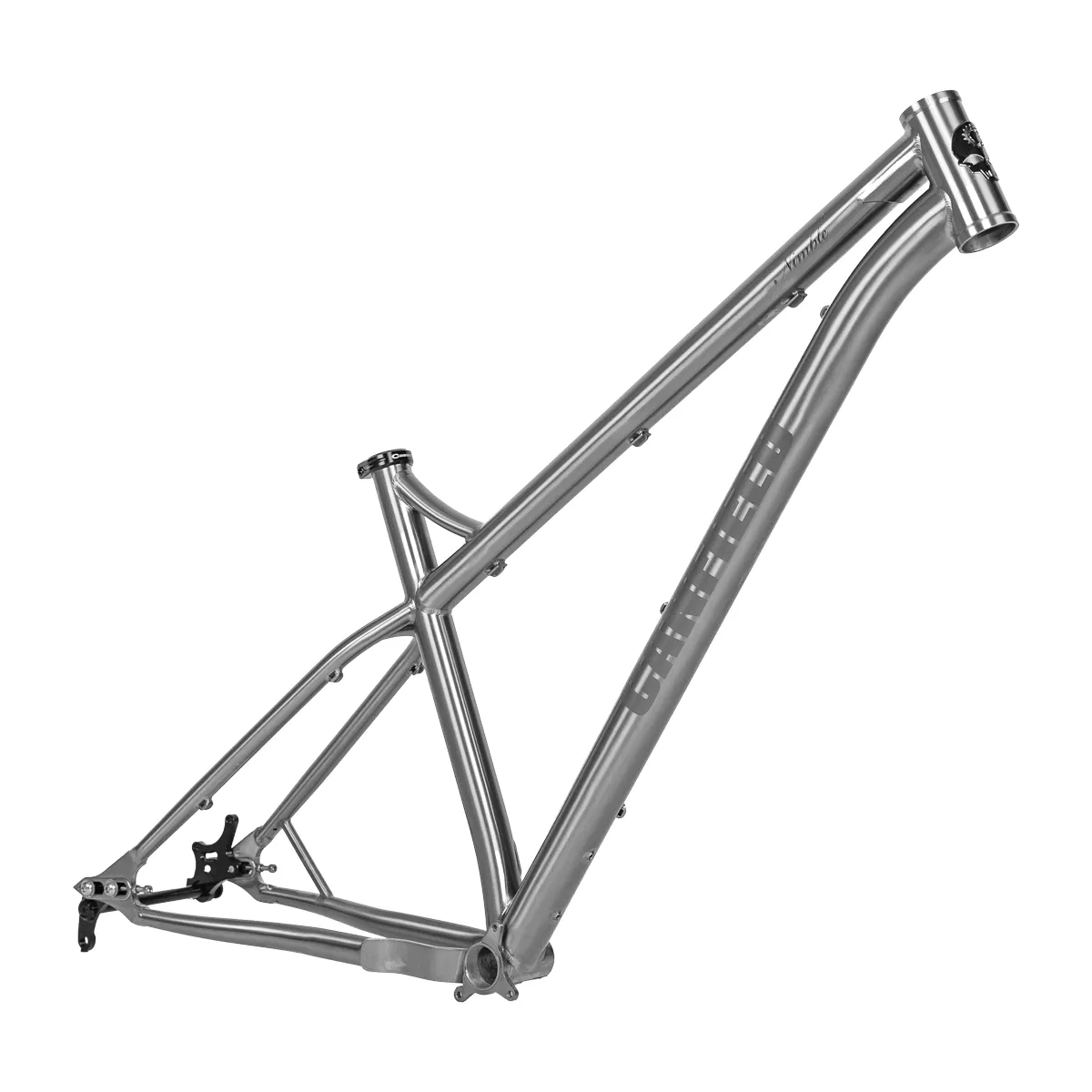

FRAME FEATURES
- 29″ All Mountain
- 3AL 2.5V Titanium
- Frame Weight Large 5lbs

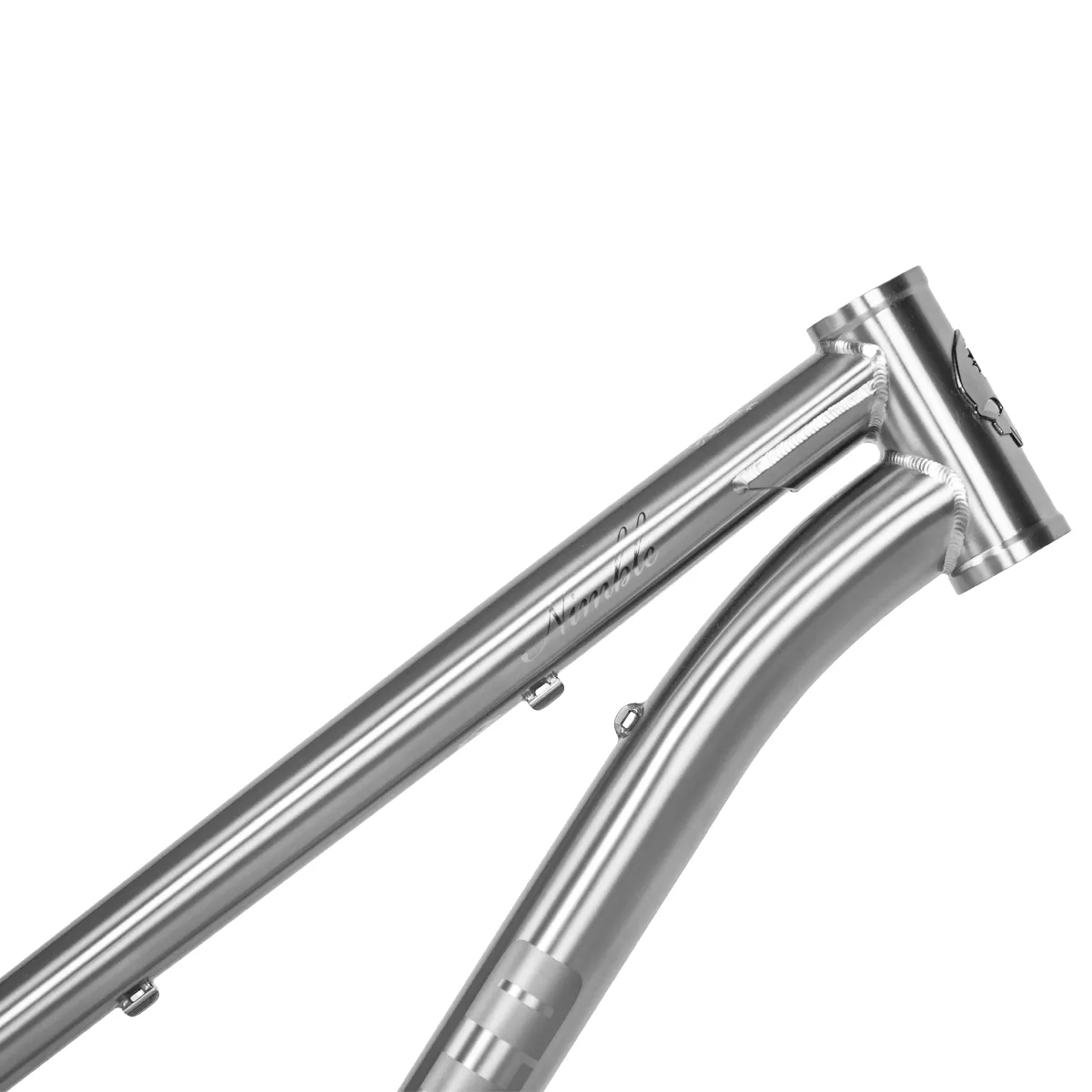

- Straight 44mm head tube
- 66° head angle (w/ 150mm fork)
- Recommended fork length: 140mm - 160mm, 44mm offset

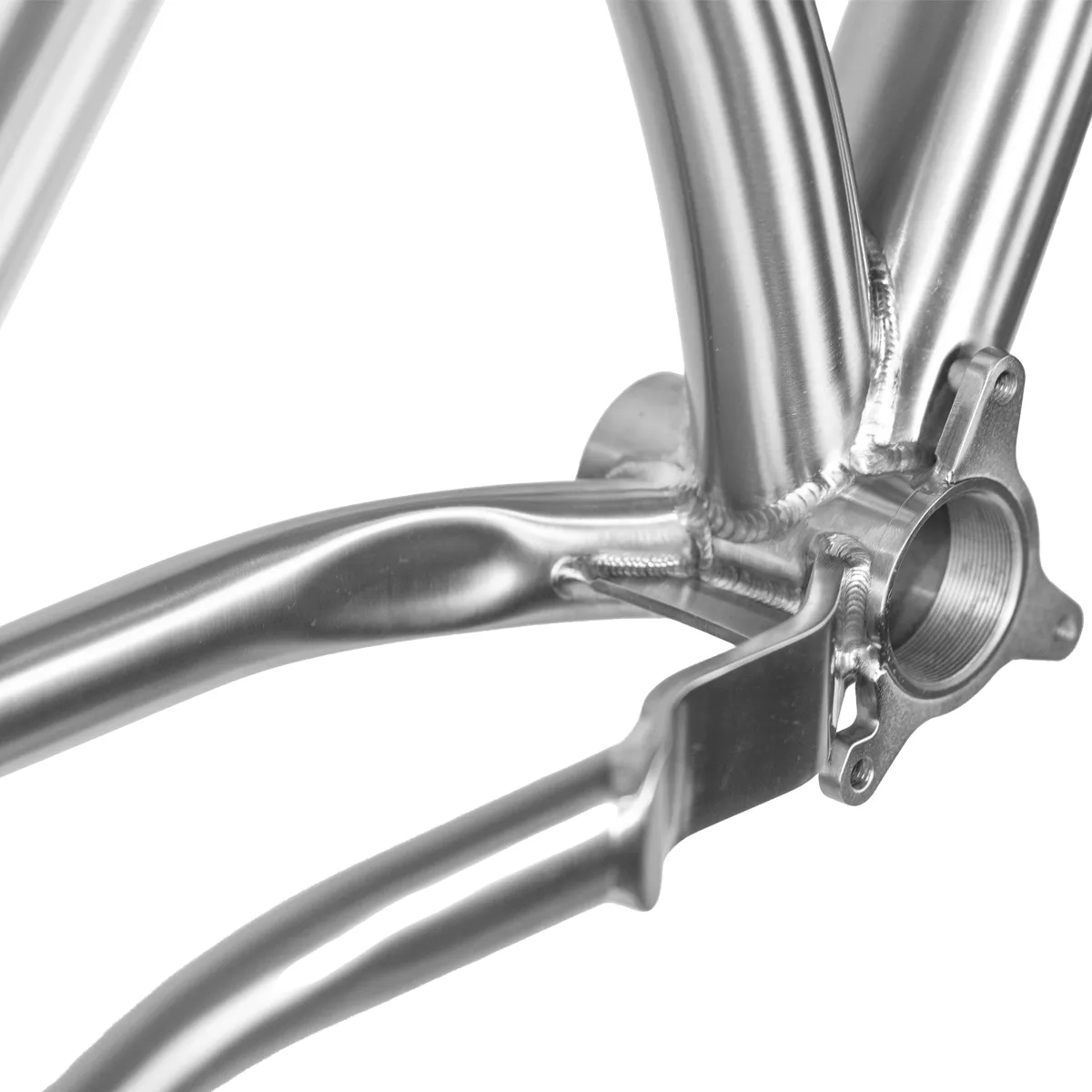

- 73mm BSA Threaded BB
- ISCG05 chain guide tabs

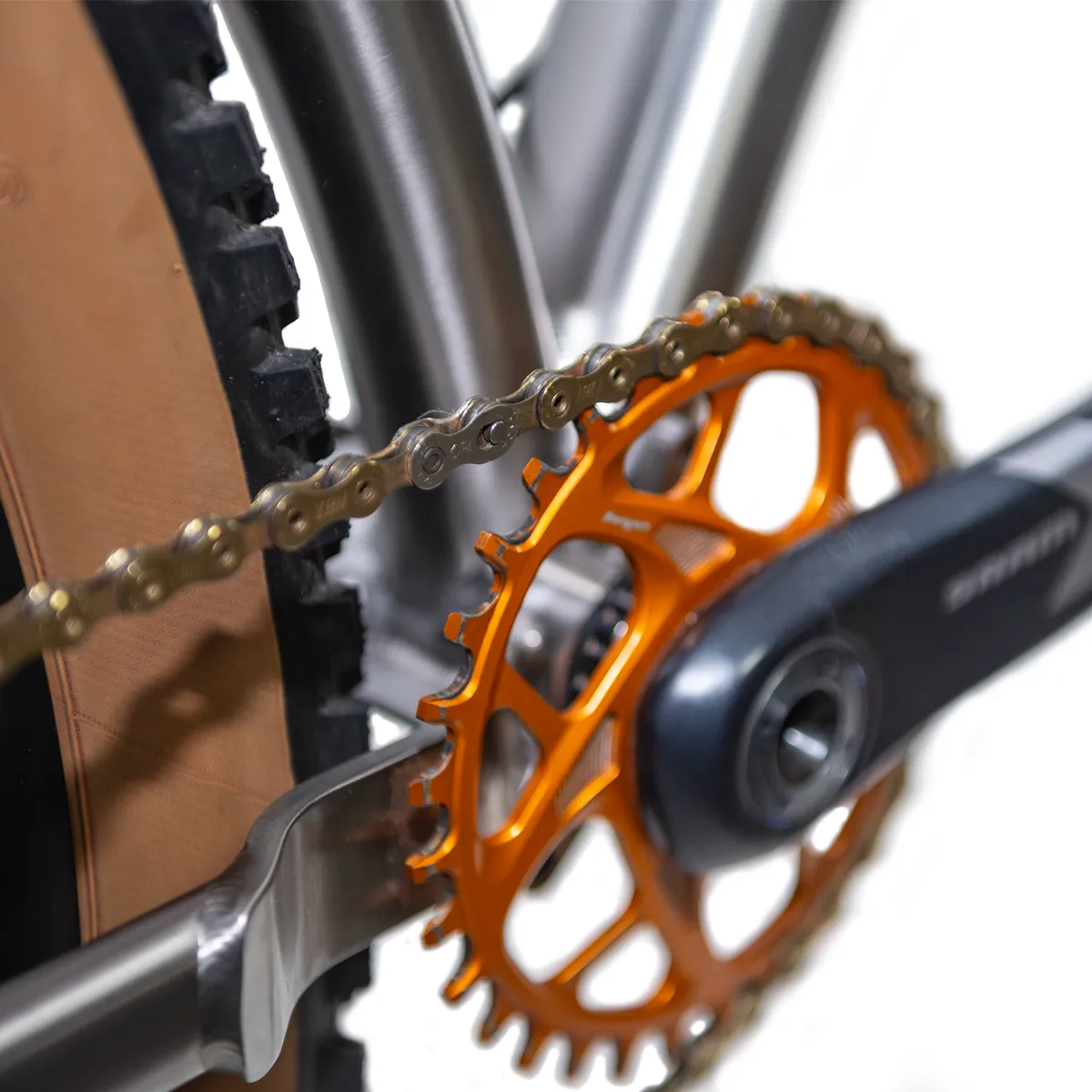

- Max chain ring size 38 (GO BIG)
- Boost 148mm x 12mm rear dropouts, 52mm chain line

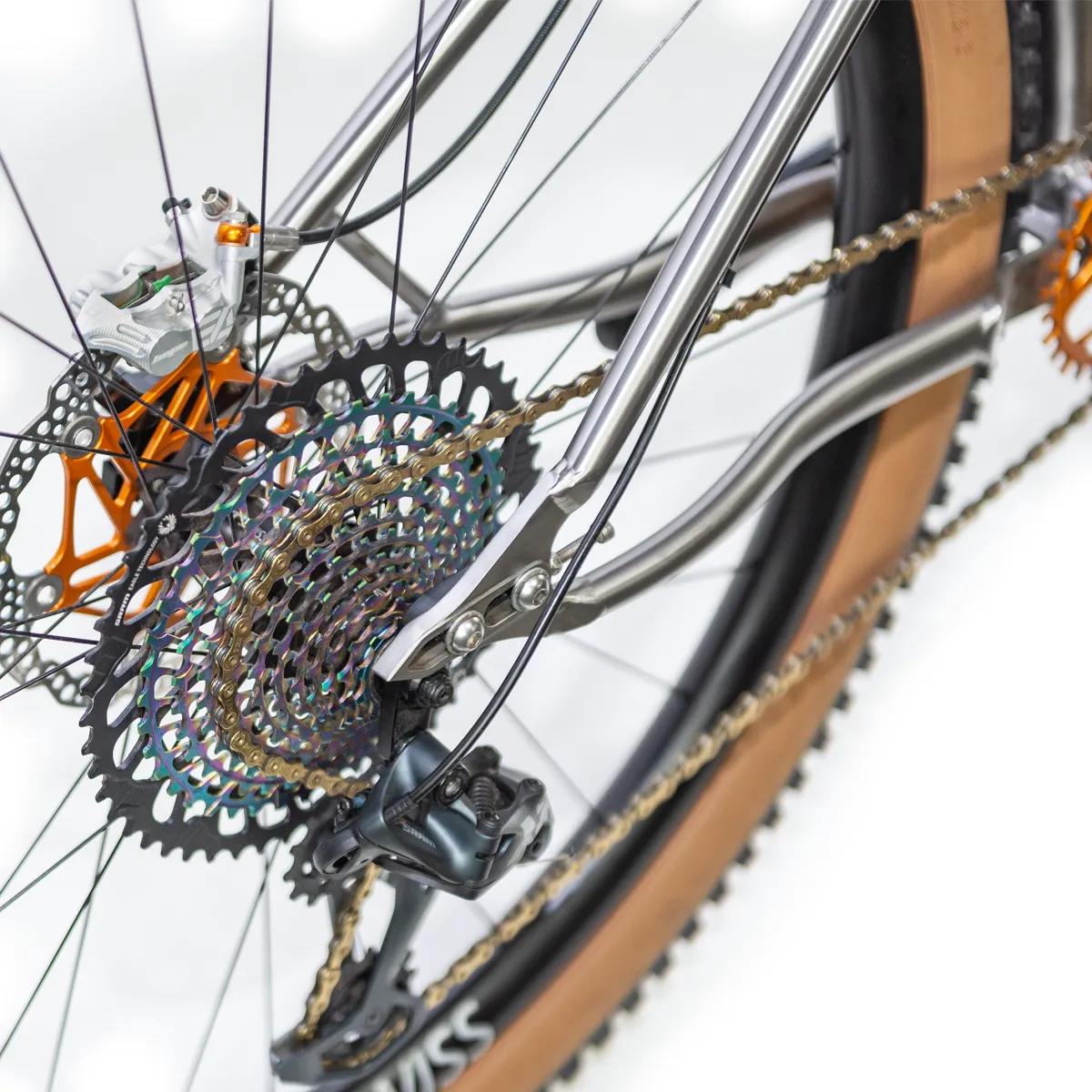

- Custom sliding adjustable dropouts, Single-speed-able
- Adjustable 417-433mm chainstays
- Includes IS 160 brake dropout, geared dropouts w/derailleur hanger, rear axle and hardware
- 31.6mm seat post
- 34.9 or 35mm clamp size
- Deep dropper post insertion, internal routing
- 81mm (3.19") Tire Opening, 2.5-2.8" tires can fit.
- External cable and brake routing
- Two water bottle bosses
| Canfield Ti Nimble 9 Geo (Based on 150mm fork, 563mm Axle to Crown) |
|---|
| Top Tube Length (Effective) S-592mm / M-616mm / L-640mm / XL-663mm / XXL-686mm |
| Reach S-425mm / M-450mm / L-475mm / XL-500mm / XXL-525 |
| Front Center S-747mm / M-772mm / L-797mm / XL-822mm / XXL-846 |
| Stack S-646mm / M-650mm / L-660mm / XL-669mm / XXL-678 |
| Standover Height S-705mm / M-705mm / L-705mm / XL-705mm / XXL-705 |
| Wheel Base S-1154mm / M-1181mm / L-1210mm / XL-1239mm / XXL-1268 |
| Head Tube Angle S-66° / M-66° / L-66° / XL-66° / XXL-66° |
| Head Tube Length S-100mm / M-105mm / L-115mm / XL-125mm / XXL-135mm |
| Seat Tube Angle (Effective) S-76° / M-76° / L-76° / XL-76° / XXL-76° |
| Seat Tube Angle (Actual) S-66.3° / M-66.3° / L-66.3° / XL-66.3° / XXL-66.3° |
| Seat Height vs. Effective Seat Tube Angle 500-76.5° / 600-76.2° / 700-75.9° / 800-75.75° / 900-75.6° |
| Seat Tube Length S-370mm / M-405mm / L-445mm / XL-490mm / XXL-490 |
| Dropper Post Depth S-250mm / M-285mm / L-325mm / XL-370mm / XXL-370 |
| Chainstay Length S-417-433mm / M-417-433mm / L-417-433mm / XL-417-433mm / XXL-417-433mm |
| Bottom Bracket Height S-325mm / M-325mm / L-325mm / XL-325mm / XXL-325mm |
| Bottom Bracket Drop S-50mm / M-50mm / L-50mm / XL-50mm / XXL-50mm |
| Geo based on 29" x 2.5" (749mm dia) tires and a 576mm axle to crown fork. (150mm travel, 44mm offset) |
SIZING
| SIZE | S | M | L | XL | XXL |
| RIDER HEIGHT | 5'2"-5'7" | 5'5"-5'11" | 5'9"-6'3" | 6'1"-6'6" | 6'4" |
