29" WHEELS // HARDTAIL // 150MM FRONT

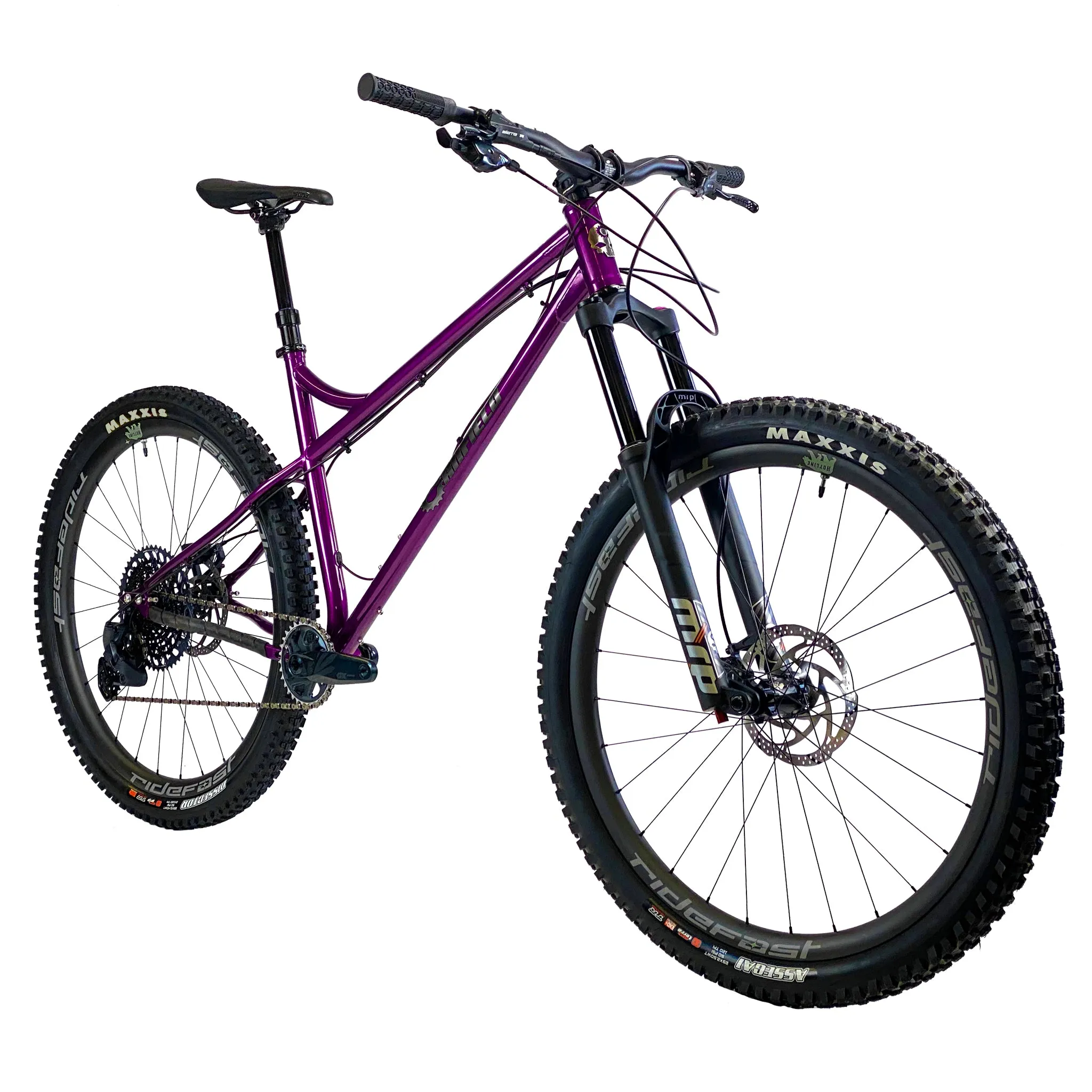

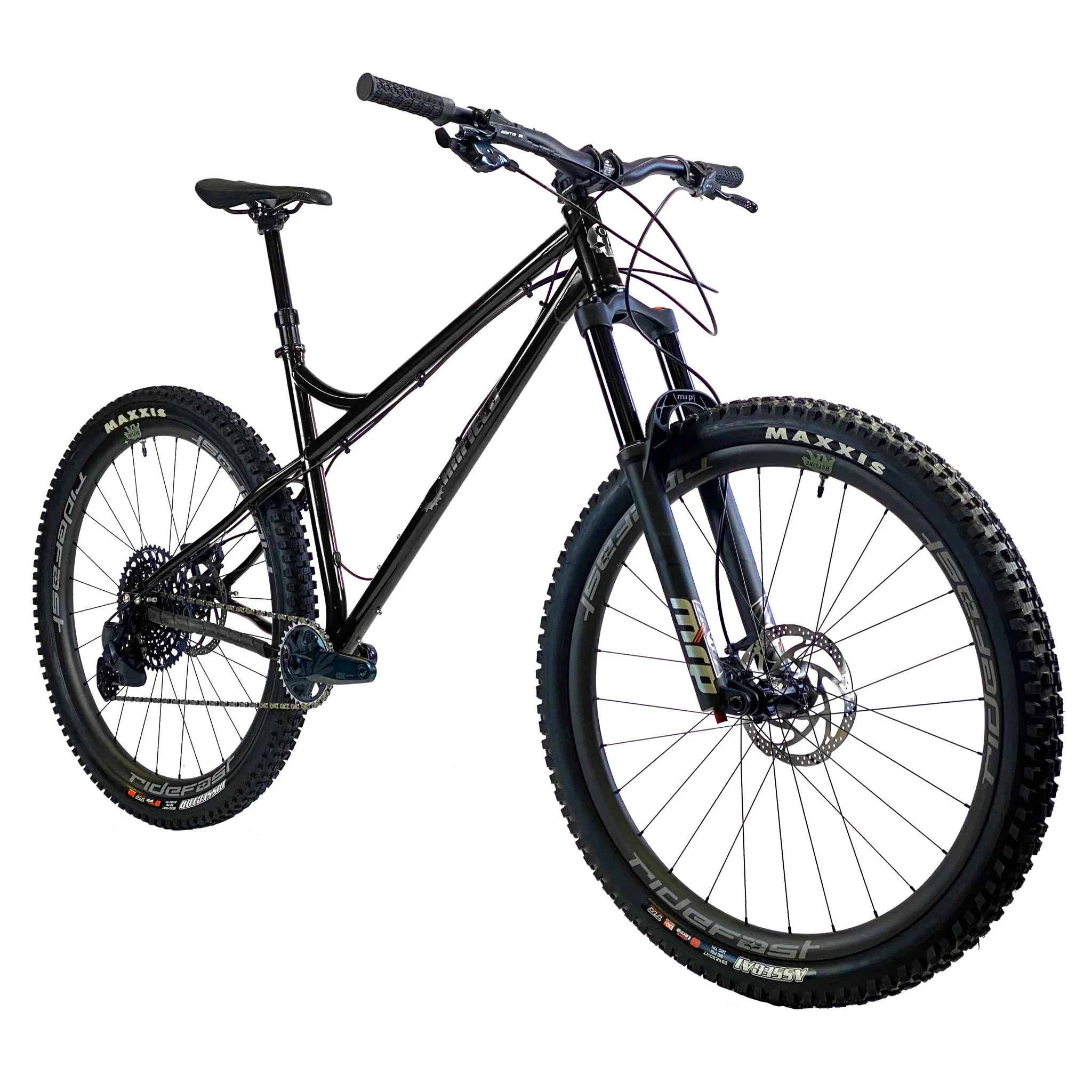

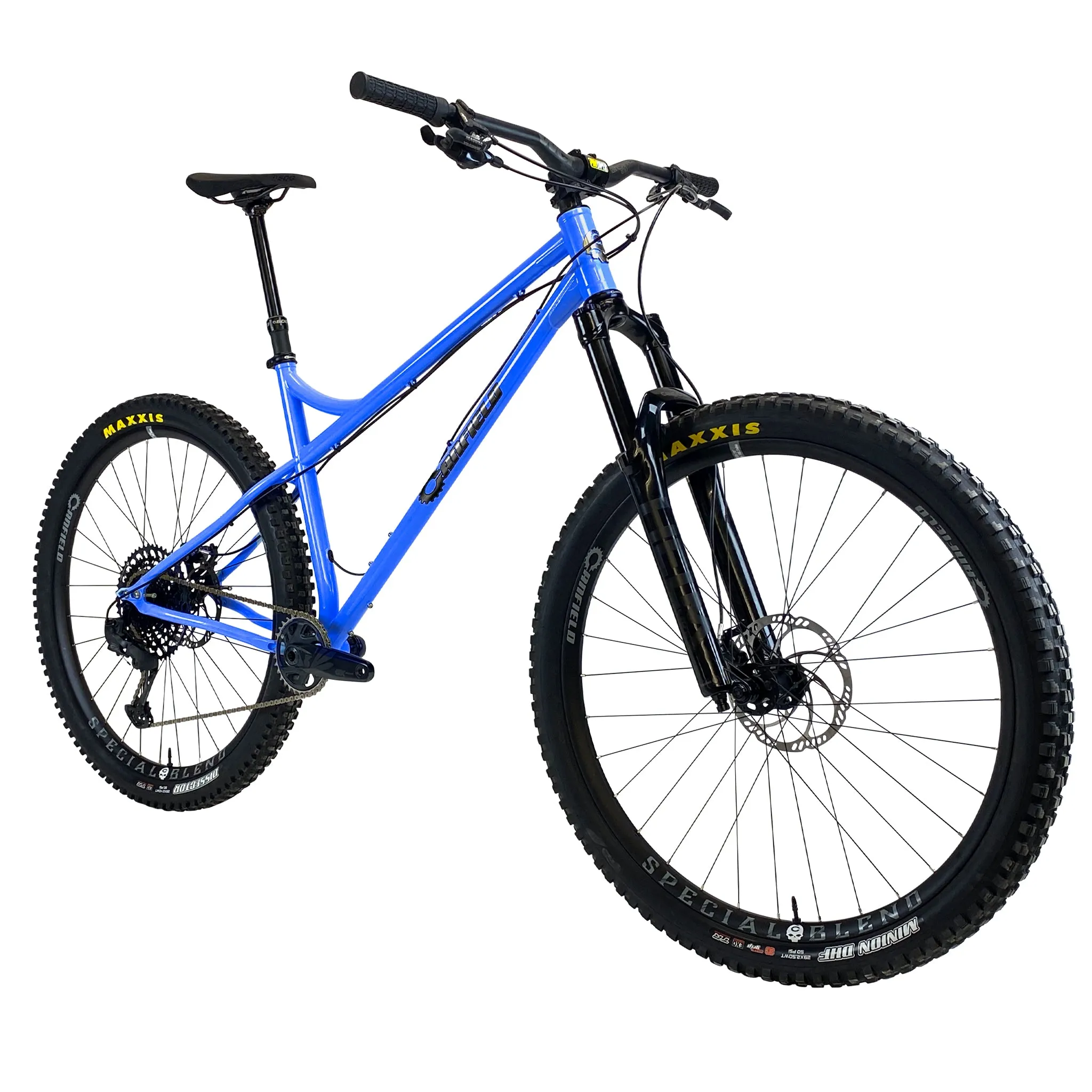

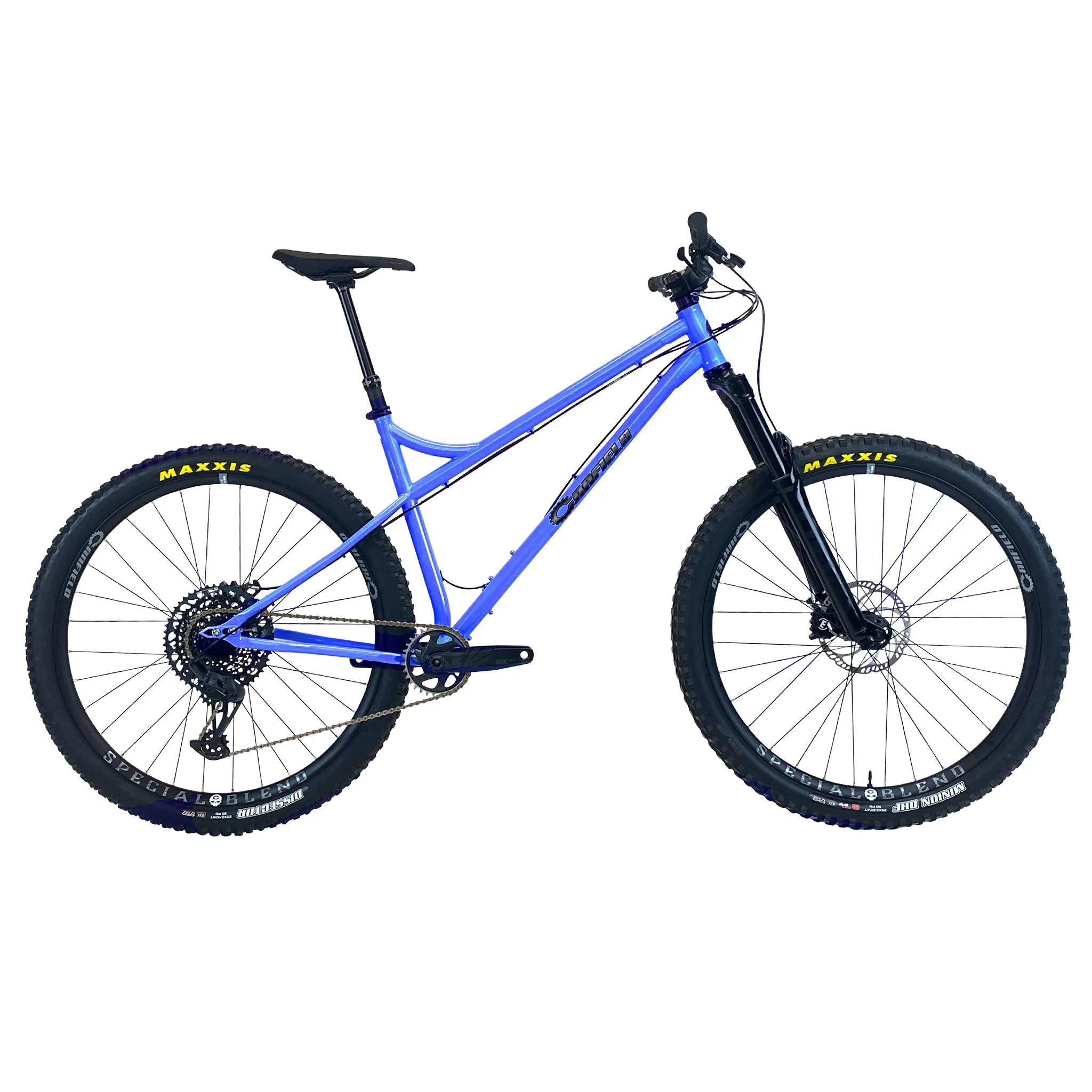

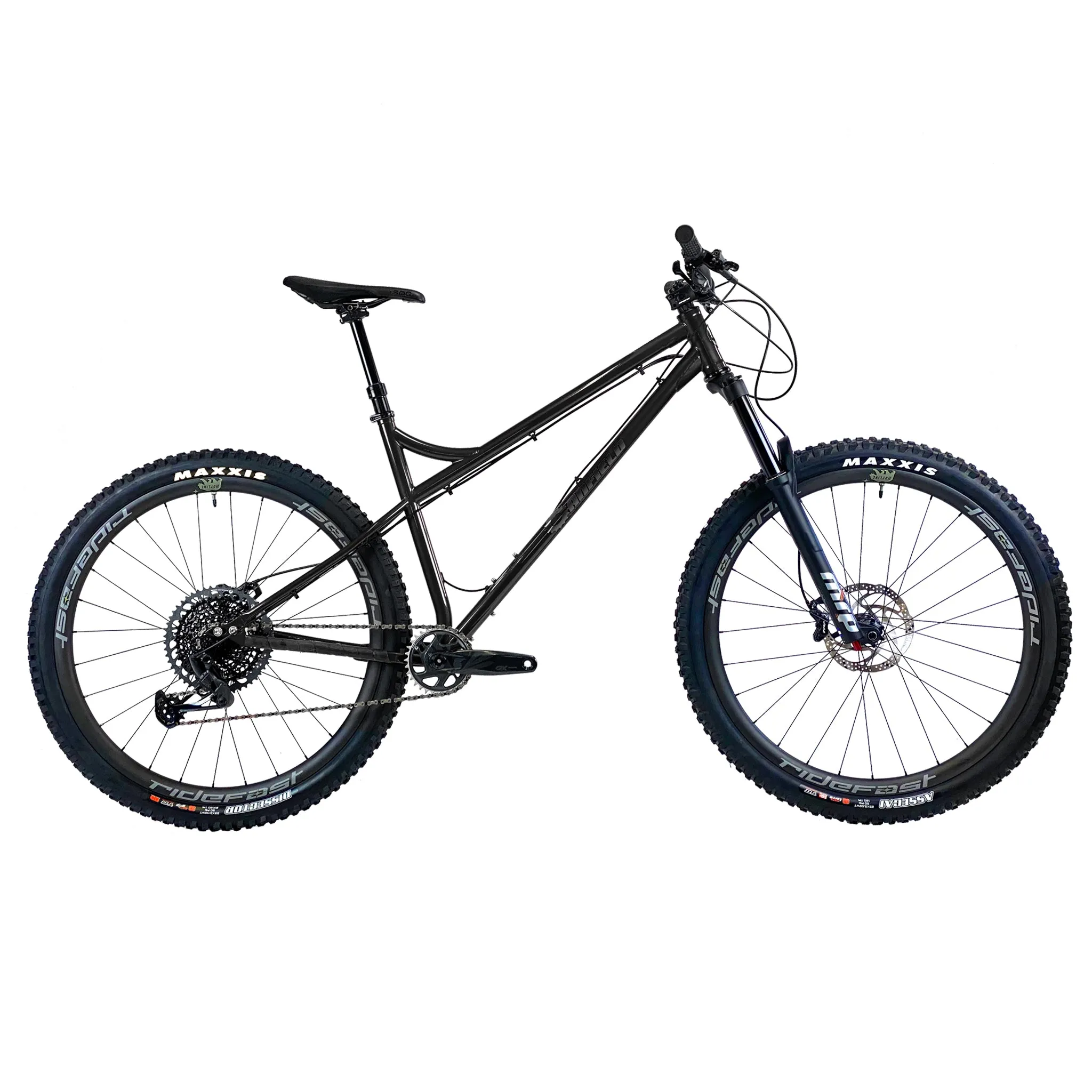

The original hardcore hardtail. Handcrafted in small batches, the Canfield Bikes Nimble 9 is a steel hardtail built to get rowdy. Combining the revered ride quality of 4130 chromoly steel with aggressive all-mountain geometry, the Nimble 9 challenges preconceptions of mountain bikes with both big wheels and rigid rear-ends.
Complete builds may take seven to 10 days to ship depending on in-stock inventory and parts availability.
| CORE | PRO |
|---|---|
| Fork: Fox 34 Factory 140mm | Fork: Fox 36 Factory 150mm |
| Cranks: Canfield AM | Cranks: Canfield AM |
| Chainring: e*thirteen 32t Round | Chainring: e*thirteen 32t Round |
| Shifter: SRAM GX Eagle | Shifter: SRAM X01 Eagle |
| Derailleur: SRAM GX Eagle | Derailleur: SRAM X01 Eagle |
| Cassette: e*thirteen Helix-R 9-50t | Cassette: SRAM X01 Eagle 10-52t |
| Brakes: TRP Slate T4 | Brakes: TRP Trail EVO |
| Rotors: TRP 180/160mm | Rotors: TRP 180/160mm |
| Wheels: e*thirteen LG1 Enduro | Wheels: Atomik AL30 |
| Tires: Maxxis Minion DHF 2.5 / Maxxis Dissector 2.4 | Tires: Maxxis Minion DHF 2.5 / Maxxis Dissector 2.4 |
| Seatpost: SDG Tellis | Seatpost: SDG Tellis |
| Saddles: Canfield SDG | Saddles: Canfield SDG |
| Bar: e*thirteen 800mm | Bar: e*thirteen 800mm |
| Stem: Canfield Special Blend 40mm | Stem: Canfield Special Blend 40mm |
| Grips: Lizard Skins Charger Evo | Grips: Lizard Skins Charger Evo |
| Seat Clamp: Canfield | Seat Clamp: Canfield |
*Photos are for illustration purposes. Final production details and build spec subject to change. Full assembly required.
FRAME FEATURES
- 29″ All Mountain
- 4130 chromoly steel
- Radial-bent seat stays for vertical compliance
- Increased reach and shorter seat tube
- 66° head angle (w/ 150mm fork)
- Recommended fork length: 140mm - 160mm
- Custom sliding Boost 148mm x 12mm rear dropouts, axle included
- 73mm BSA Threaded BB
- Crank Length: 155mm (SM), 160mm (MD), 165mm (LG), 170mm (XL)
- 30.9mm seat post
- 34.9 or 35mm clamp size
- Adjustable 16.33“ – 16.93” chainstays
- Brake mount: IS 160mm
- Singlespeed-able
- Stealth cable routing
- Two water bottle bosses
- Includes dropouts/derailleur hanger, rear axle and hardware
- Max. chainring size: 34t round / 32t oval
- Max. seatpost insertion: 200mm(S), 235(M), 275(L), 320(XL)
Full assembly is required on complete bikes.
| Canfield Nimble 9 Geo (Based on 150mm fork, 563mm Axle to Crown) |
|---|
| Top Tube Length (Effective) S-570mm / M-597mm / L-625mm / XL-652mm |
| Reach S-425mm / M-450mm / L-475mm / XL-500mm |
| Stack S-634mm / M-638mm / L-648mm / XL-656mm |
| Standover Height S-745mm / M-780mm / L-800mm / XL-830mm |
| Seat Tube Length S-370mm / M-405mm / L-445mm / XL-490mm |
| Wheel Base S-1156mm / M-1183mm / L-1212mm / XL-1241mm |
| Head Tube Angle S-66° / M-66° / L-66° / XL-66° |
| Seat Tube Angle (Effective) S-77° / M-77° / L-77° / XL-77° |
| Chainstay Length S-415-430mm / M-415-430mm / L-415-430mm / XL-415-430mm |
| Bottom Bracket Height S-325mm / M-325mm / L-325mm / XL-325mm |
| Bottom Bracket Drop S-50mm / M-50mm / L-50mm / XL-50mm |
| Head Tube Length S-100mm / M-105mm / L-115mm / XL-125mm |
SIZING
| SIZE | S | M | L | XL |
| RIDER HEIGHT | 5'2"-5'7" | 5'5"-5'11" | 5'9"-6'3" | 6'1"-6'6" |
*This size chart is only a suggestion. Every riding style and body is different.
*Photos are for illustration purposes. Final production details may vary.
